TABLE data file can either be FITS files or VOTables. Saada models tables by one record for the table header and one record for each table entry. Both classes (header + entry) have their own configuration but encapsulated in one file.

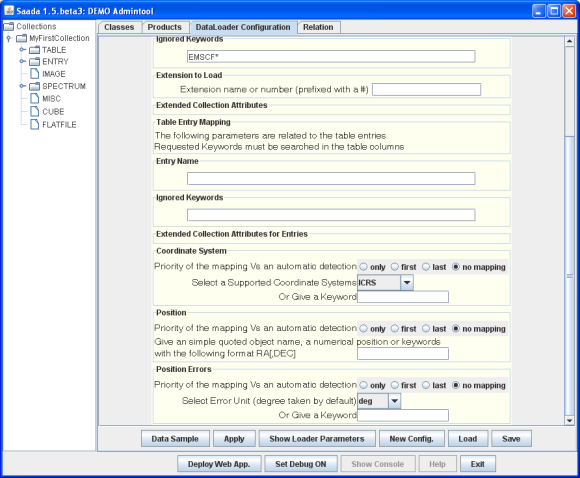

Extension Selection : By default Saada will consider the first extension of type TABLE (first table for VOTables) as the table to load. The field Extension to Load can nevertheless specify which extension must be loaded. This extension must be given either by number (e.g. #1) or by name. The selected extension can be drag and dropped from the data sample window.
The table header mapping is similar to the MISC mapping (see) added with a selector for the FITS extension or the VOTable table containing the entries.
The Entry mapping has not class mapping choice. Entries are mapped with the same way as for their header. The entry class name is the header class name followed by Entry. Other fields work as for MISC or SPECTRA. last update 2008-05-13
|
