Were are now going to load one catalog in our SaadaDB. The data table is taken from the XMM-Newton survey of the Local Group galaxy M 33 (Pietch at al. Astron. Astrophys. 426, 11 (2004)).

 Start the SaadaDB administration tool
 Go in the SaadaDB bin directory.
 Run the administration tool.

% cd  myFirstStepWithSaada/saadadbs/MySaadaDB/bin

% ./admintool

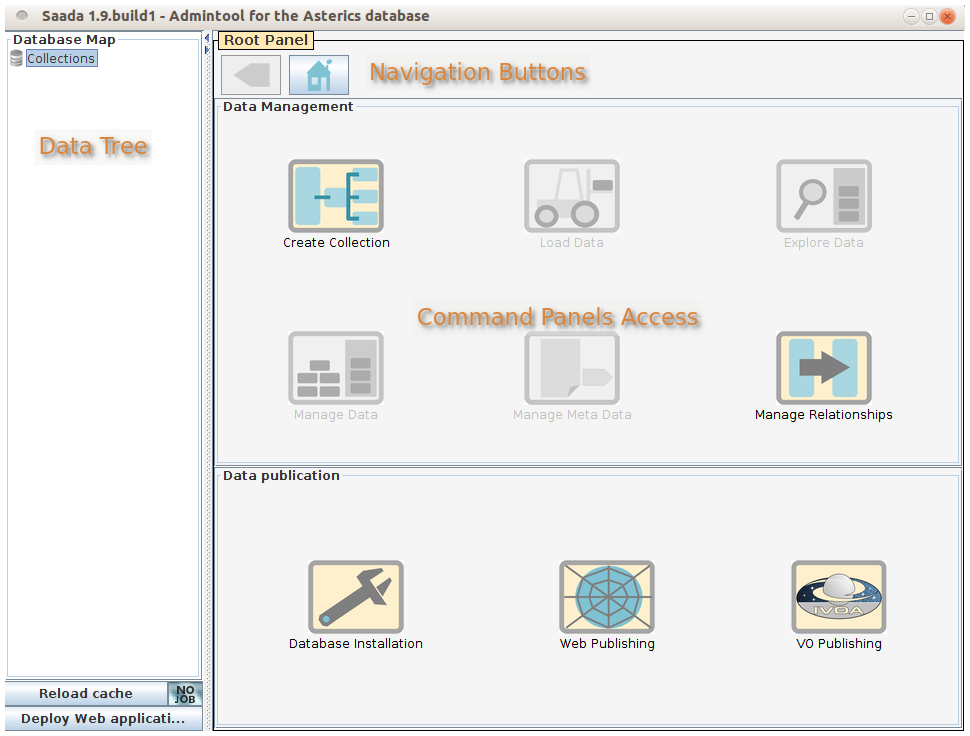

The administration window opens. We are now to use basic features.

 Create a data collection

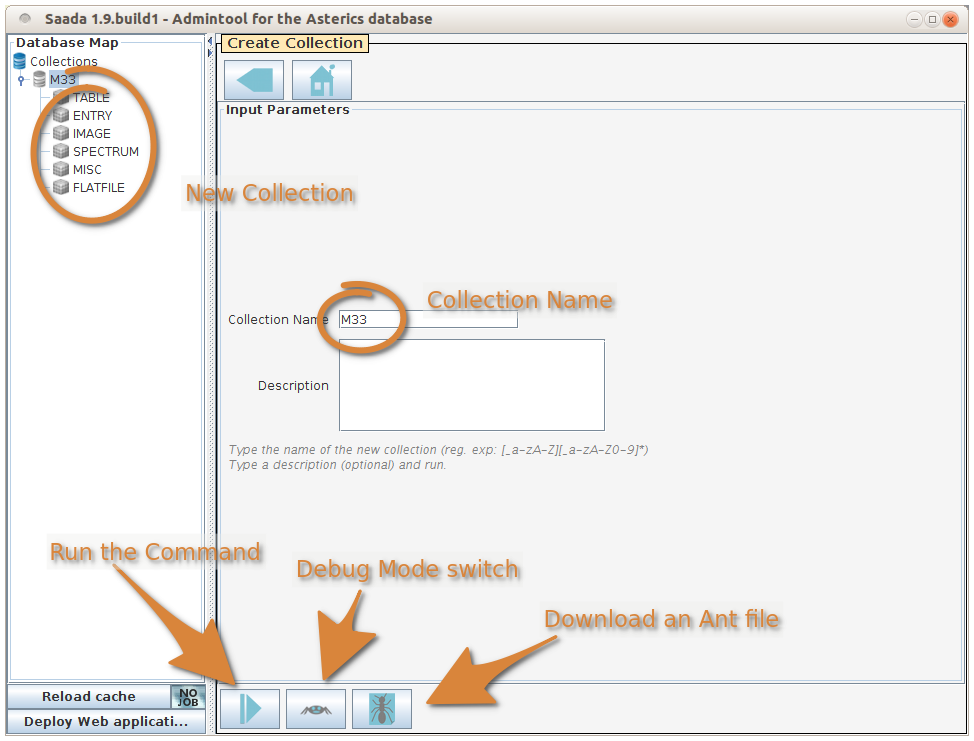

• Click on the "Create Collection" button
• Give M33 as name
• Run the command.
  • You can see that the collection contains actually 6 sub-nodes. They are containers each one dedicated to one data category (read more)

 Load a FITS table

• Download the FITS table and save it.

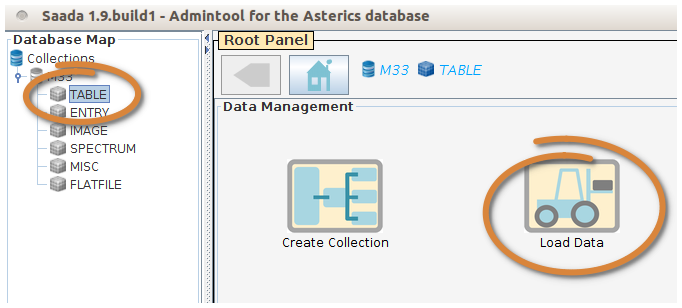

• Select the TABLE data node.

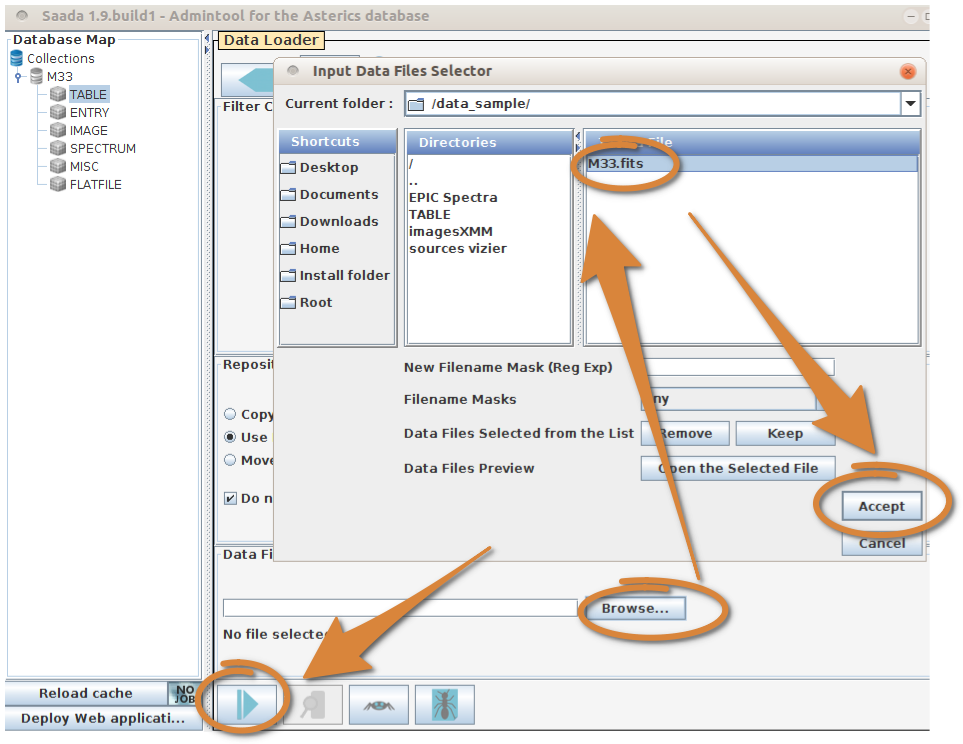

• Click on Load Data, the data loader window opens .
• Open the file browser
• Select the M33.fits file.
• Run the command.
  • 2 data nodes have been filled up : one for the table header and one for the table rows.
  • Double click on a node to see its content
  • Each sub collection contains 2 nodes, one with the data extracted from the file and another with data computed by Saada (collection level data)

 Deploy the WEB interface

• Click on
• Open a browser on http://localhost:8080/SaadaDBName where SaadaDBName is the DB name given at creation time.
• Go here for a guided tour of the WEB interface.
